SSV75
SKID STEER LOADERS
MSRP AS LOW AS
$0.00
Based on the 2021 Equipment Watch Awards for Highest Retained Value and 5-year residual value - Large Skid Steer Loaders

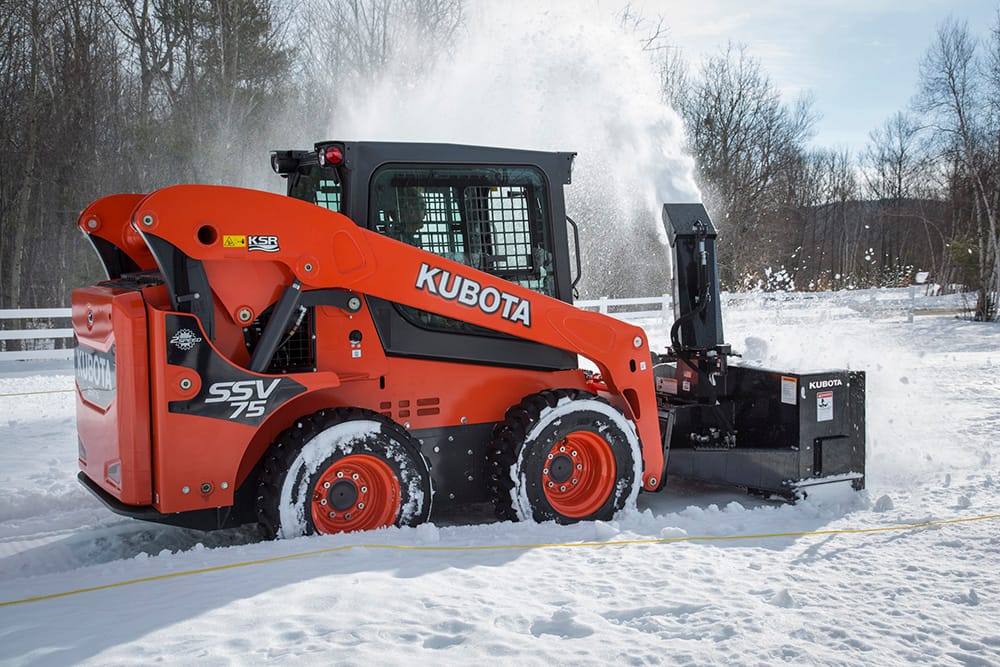

The Kubota SSV75 Skid Steer Loader doesn’t just boast quality Kubota craftsmanship, it backs it up with a 74.3 horsepower engine and tipping load of 5,380 pounds. Whether making use of pallet forks, bale spears, grapples or augers, the SSV75 ensures you’re operating with precision, efficiency and, most importantly, confidence.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 48 Months or Save up to $6,000 on Construction Equipment!
Construction
Save up to $3,000 or $0 Down, 0% A.P.R. FOR UP TO 36 MONTHS ON SKID STEERS
SKID STEERS
Specifications
Aspiration
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Bore Stroke, In. (mm)
Bucket Breakout Force, Lbf (kgf)
Chain Size A S A#
Cylinders
Displacement (cu. In.)
Emission Certification
Engine
Fuel Tank, Gal (l)
Ground Clearance, In. (mm)
Height To Hinge Pin, In. (mm)
Horsepower (gross)
Hydraulic Tank, Gal (l)
Lift Arm Breakout Force, Lbf (kgf)
Lift Arm Path
Loader Hydraulic Flow, G P M ( L P M)
Loader Hydraulic Pressure Psi, Kgf (cm2)
Operating Weight, Lbs (kg)
Overall Height, In. (mm)
Overall Length, In. (mm)
Overall Width, In. (mm)
Reach At Maximum Height, In. (mm)
Standard Tire Size, In.
Tipping Load, Lbs (kg)
Traction Force, Lbs (kg)
Traveling Speed: High. Mph (kph)
Traveling Speed: Low, Mph (kph)
Aspiration
Turbocharged
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
20.9 (79.0) / 30.4 (115.0)
Bore Stroke, In. (mm)
3.8 (94) × 4.8 (120)
Bucket Breakout Force, Lbf (kgf)
5884 (2669)
Chain Size A S A#
100
Cylinders
4
Displacement (cu. In.)
203.3
Emission Certification
Tier 4
Engine
V3307-CR-TE4
Fuel Tank, Gal (l)
26.9 (102.0)
Ground Clearance, In. (mm)
8.1 (207)
Height To Hinge Pin, In. (mm)
128.3in (3258)
Horsepower (gross)
74.3
Hydraulic Tank, Gal (l)
4.2 (16.0)
Lift Arm Breakout Force, Lbf (kgf)
4850 (2200)
Lift Arm Path
Vertical
Loader Hydraulic Flow, G P M ( L P M)
20.9 (79.0)
Loader Hydraulic Pressure Psi, Kgf (cm2)
3271 (230)
Operating Weight, Lbs (kg)
8245 (3740) / 8466 (3840)
Overall Height, In. (mm)
81.3in (2065)
Overall Length, In. (mm)
Without Bucket: 115.0in (2920), With Bucket: 144.1in (3660)
Overall Width, In. (mm)
Width over Wheels: 71.8in (1823), Width with Standard Bucket: 75in (1905)
Reach At Maximum Height, In. (mm)
36.9in (936)
Standard Tire Size, In.
12-16.5-10PR
Tipping Load, Lbs (kg)
5380 (2440)
Traction Force, Lbs (kg)
8494 (3853)
Traveling Speed: High. Mph (kph)
11.8 (19.0)
Traveling Speed: Low, Mph (kph)
7.4 (11.9)
